Spec sheet

Technical standard: 5G NR FR2 (mmWave) gNB · AIO split
Operating frequency*: 26.5–29.5 GHz · n257 / n258
Tx / Rx paths: 128T / 128R
Antenna: 8×8 dual-pol (±45°) · 23 dBi
Beam steering: 90° (1 dB) / 120° (4 dB) · 13.5° beam
Total Tx power: 640 mW (28 dBm)
EIRP: 51 dBm
Channel bandwidth: Up to 4 × 100 MHz (800 MHz IBW)
MIMO layers: DL 2 · UL 1
Modulation: DL / UL up to 64QAM
Backhaul: 1 × 10GbE SFP+ (fibre)
Synchronisation: GPS (incl.) · 1588v2 PTP ready · 8 h holdover
Power: −48 V DC (40.5–57 V) · 85 W nom / 130 W max
Dimensions: 400 × 220 × 120 mm
Weight: 6.7 kg
Install: Pole or wall · optional bracket, 20° tilt
Operating: −40 → 55 °C · 8–100 % RH (condensing)
IP grade: IP66

* Some bands may not be available in all jurisdictions and/or may not be certified for use in those jurisdictions.

Product · 5G mmWave gNB

Wave mmWave gNB

A compact, high-performance outdoor 5G mmWave gNB with an integrated 128T/128R beamforming array, up to four 100 MHz channels and 10GbE fibre backhaul. Drag to explore.

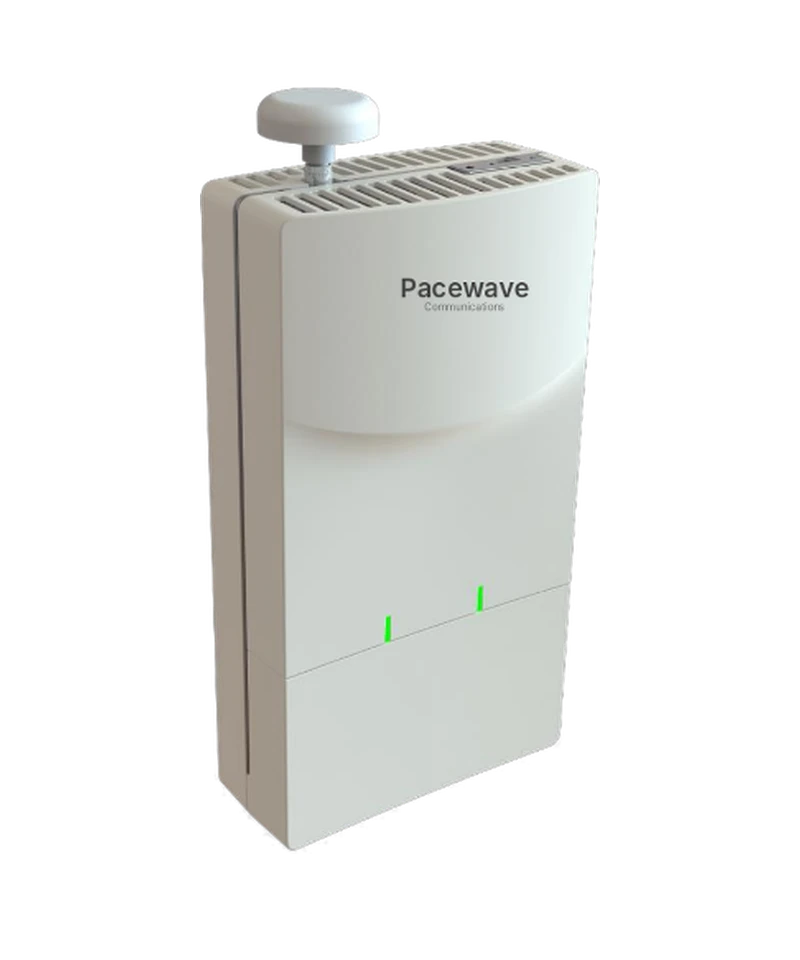

Wave — three-quarter view (illustration)

Talk to our team Download spec sheet

IP66

IP grade

128T128R

Antenna

51dBm

EIRP

4×100MHz

Channel BW

10GbE

Fibre backhaul

Illustrations are indicative and not to scale. Specifications are typical values and may vary by variant and software release.

Product overview

The Pacewave Wave is a compact, high-performance outdoor 5G mmWave gNB for the FR2 n257, n258 and n261 bands. An integrated 128T/128R antenna array, built as an 8×8 matrix of dual-polarised elements, beamforms in azimuth and elevation to deliver 51 dBm EIRP. The all-in-one unit carries up to four 100 MHz channels, with 10GbE fibre backhaul and GPS synchronisation.

Wave gNB — Technical SpecificationPDF · single page

Pairs well with

Wave is one part of a complete Pacewave mmWave network.
