Secure subscriber identity
MILENAGE authentication on an AES kernel, 128 K of memory, 100,000 erase/write cycles and 10-year data retention.
Products · Supplemental
SIM Cards
Pacewave-branded SIMs for private LTE and 5G networks: one card for every device, loaded with your network identity and ready to authenticate against your core.
One SKU
2FF, 3FF and 4FF break-outs
USIM + ISIM
Data, VoLTE and IMS services
10 years
Data retention
SIM card capability
One card, every form factor

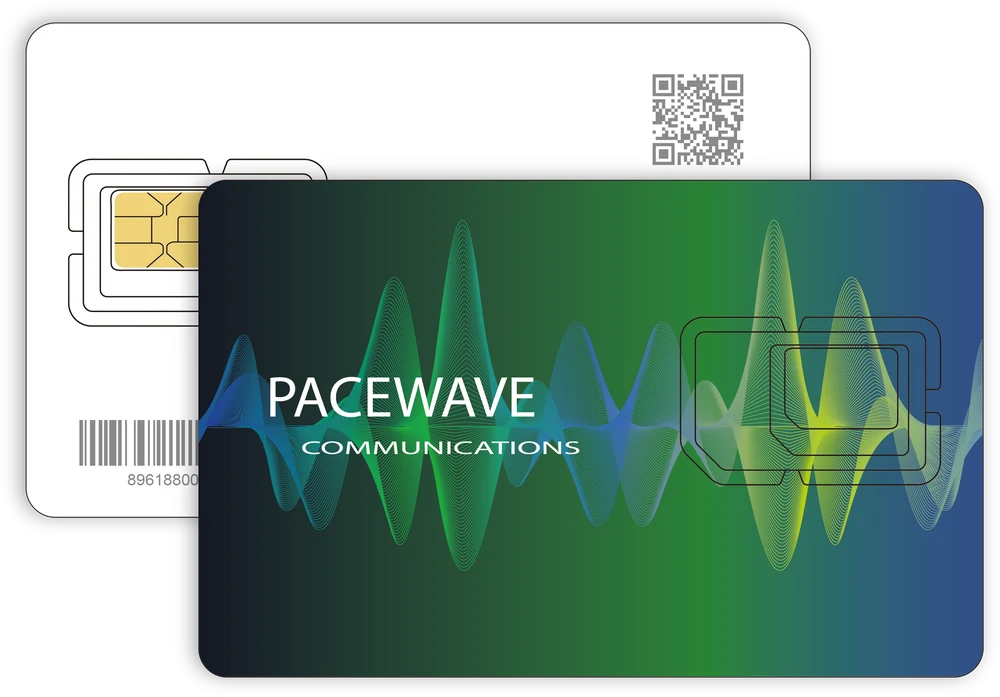

Shipped as a full ID-1 card with 2FF, 3FF and 4FF break-outs, so a single SKU covers handsets, routers and IoT modules.
More than voice and data
ISIM for IMS, so the same card supports VoLTE, VoWiFi and other IMS-based services.
Configurable standard profile
The Pacewave standard profile, with your own PLMN, ICCID, IMSI, IMS, language and service provider name.
Your network, on the card
Every card ships with the Pacewave standard profile. You choose the variables that make it yours.
Pair the cards with a Pacewave Core and devices authenticate against the HSS (4G) or UDM (5G) using MILENAGE, so only your SIMs can attach to your network.
- PLMNYour network code (MCC + MNC), so devices attach to your private network.
- ICCIDThe card serial number range, printed on the card and used for stock and activation.
- IMSISubscriber identities from your own range, matched to your HSS / UDM.
- IMSIMS identities for voice and messaging services on the ISIM.
- LanguagePreferred language for handset prompts.
- Service provider nameThe network name shown on the device, so users see your brand.
One card, every form factor
- ID-1 card body85.60 × 53.98 mm
- 2FF Normal SIM25.40 × 15.00 mm
- 3FF Micro SIM15.00 × 12.00 mm
- 4FF Nano SIM12.30 × 8.80 mm
Pop out the size each device needs: handsets, CPEs and routers, or IoT modules.
Standards & 3GPP compliance
| Capability area | What the Pacewave SIM delivers | Specified under |
|---|---|---|
| UICC platform | ETSI Release 6 UICC; physical and logical terminal interface | ETSI TS 102 221 · 3GPP TS 31.101 |
| USIM application | Subscriber identity and network access for 3G, 4G and 5G | 3GPP TS 31.102 |
| ISIM application | IMS identity for VoLTE, VoWiFi and IMS-based services | 3GPP TS 31.103 |
| Authentication | MILENAGE algorithm set running on an AES (Rijndael) kernel | 3GPP TS 35.205–35.208 |
| Remote management Optional | RFM for USIM with DES or AES; RAM over HTTPS and CAT-TP | 3GPP TS 31.115 / 31.116 · ETSI TS 102 225 / 226 |
| Toolkit & applets Optional | Java Card 3.0.2 Classic with GlobalPlatform 2.2.1 applet loading | 3GPP TS 31.111 · GlobalPlatform 2.2.1 |
| Non-3GPP access Optional | EAP credentials for Wi-Fi and untrusted non-3GPP access | 3GPP TS 33.402 · ETSI TS 102 310 |
| Physical card | ID-1 body, contact field and electrical characteristics | ISO/IEC 7816-1/2/3 · ISO/IEC 7810 |
Optional features are not part of the standard Pacewave profile. References name the 3GPP / ETSI series under which each feature is specified.
Full specification
Physical & form factors
- ID-1 card body
- 85.60 × 53.98 mm
- 2FF Normal SIM
- 25.40 × 15.00 mm
- 3FF Micro SIM
- 15.00 × 12.00 mm
- 4FF Nano SIM
- 12.30 × 8.80 mm
- Materials
- ABS standard, PVC laminated
- Contact field
- 6-pin or 8-pin layout
- Printing
- 4-colour, body and plug-in
- Personalisation
- Laser engraving
- Scratch label
- PIN / PUK
Card properties
- Operating voltage
- 1.8 V to 5 V
- Grade
- Consumer
- Temperature range
- −20 °C to +85 °C
- Memory
- 128 K
- Erase / write cycles
- 100,000
- Data retention
- 10 years
- Internal clock
- Up to 25 MHz
Software features
- ETSI Release 6 product
- Java Card 3.0.2 Classic Edition
- GlobalPlatform 2.2.1
- RAM over HTTPS
- ISIM (IP Multimedia Services Identity Module)
- EAP (Extensible Authentication Protocol)
- MBMS (Multimedia Broadcast / Multicast Service)
- CAT-TP
- Extended logical channels
- Remote File Management for USIM (DES or AES)
- MILENAGE with AES kernel
Options
Industrial and automotive SIMs
Physical SIM variants built for harsher conditions. The standard card is consumer grade (−20 °C to +85 °C); choose an industrial or automotive variant for outdoor CPEs, vehicles, mining and other demanding sites.
eSIM
eSIM capability for devices with an embedded SIM. Profiles are downloaded and managed through an external eSIM management platform.
