Spec sheet

Technical standard: 5G NR Sub-6 GHz gNB · full gNB, single sector
Operating frequency*: n77/n78 · 3.3–3.6 GHz / 3.7–4.0 GHz
Tx / Rx paths: 2T2R
Tx power: 2 × 33 dBm (2 W)
Antenna: Integrated 16.5–17.6 dBi · 57–60° AZ · ±45°, or external (2 × DIN 4.3/10)
EIRP: Up to 55 dBm (SKU dependent)
Channel bandwidth: 40 / 80 / 100 MHz
Peak throughput: DL 870 Mbps · UL 80 Mbps
Backhaul: 1 × 1G SFP · 1 × RJ45 100/1000Base-T
Synchronisation: GPS (enhanced receiver) · 8 h holdover
Power: −48 V DC (−40.5 to −57 V) · 70 W max
Dimensions: 496 × 279 × 131 mm
Weight: 9 kg (bracket 1 kg)
Install: Pole or wall (restricted-access area)
Operating: −40 → 55 °C · 5–95 % RH
IP grade: IP65

* Some bands may not be available in all jurisdictions and/or may not be certified for use in those jurisdictions.

Product · 5G Sub-6 gNB

WavePlus Sub-6 gNB

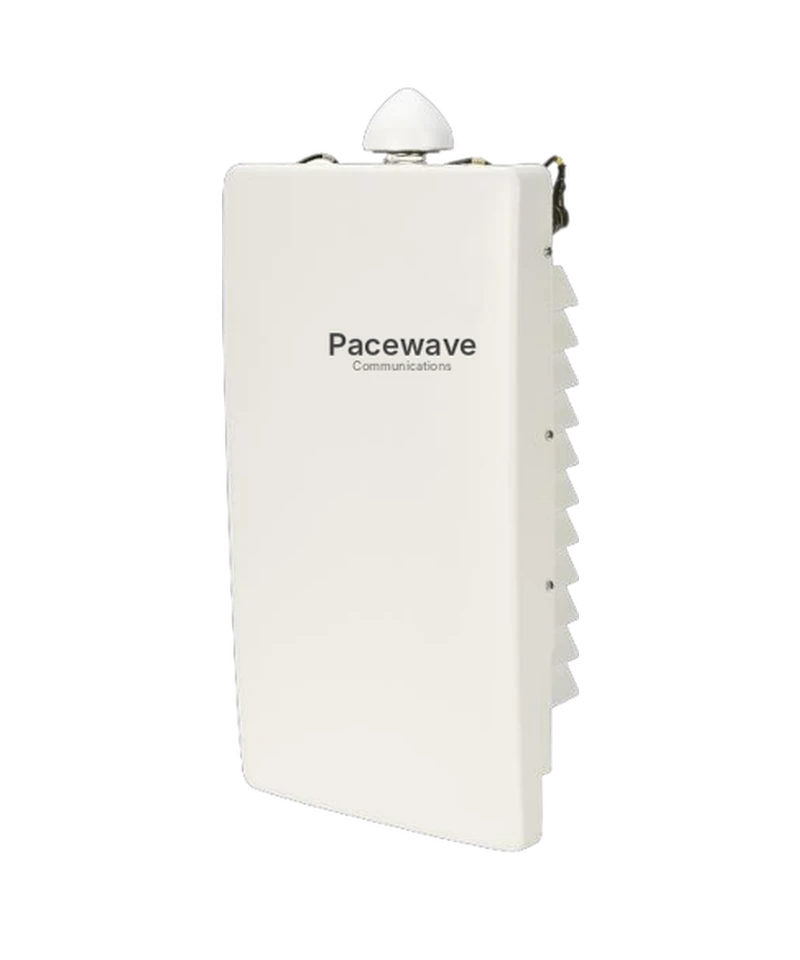

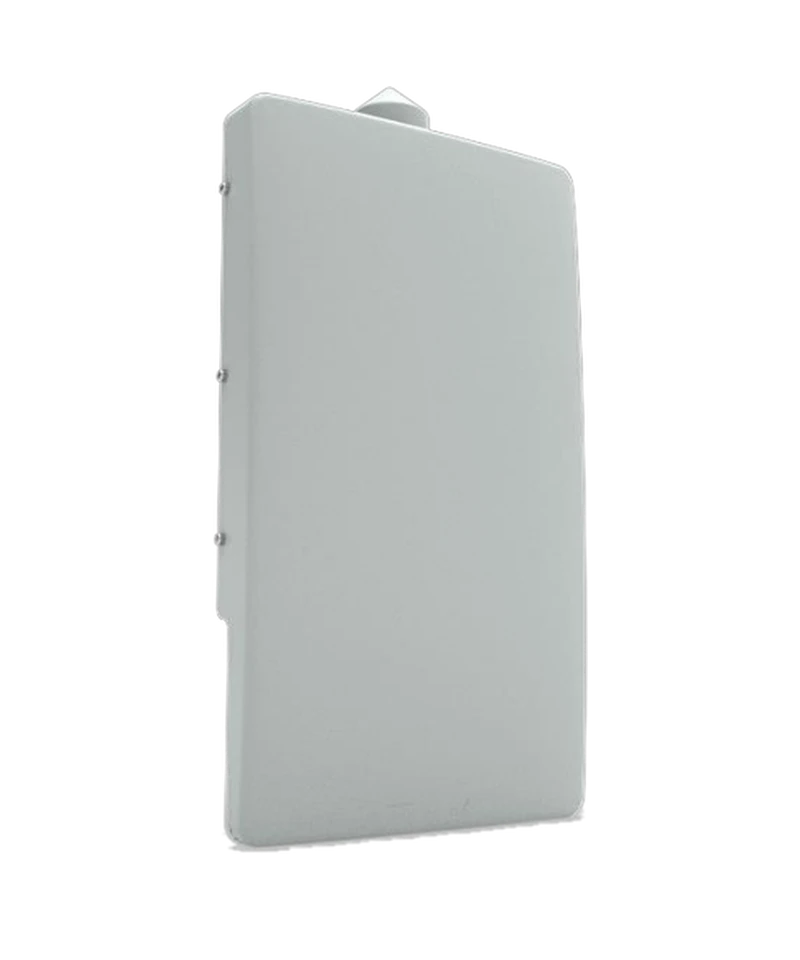

A compact, easy-to-deploy outdoor 5G Sub-6 GHz gNB for pole or wall installation — a full gNB in a single IP65 enclosure with integrated or external antenna. Drag to explore.

WavePlus — three-quarter view (illustration)

WavePlus — interfaces view (illustration)

Talk to our team Download spec sheet

IP65

IP grade

2T2R

Tx / Rx

870Mbps

Peak DL

55dBm

Max EIRP

1GSFP · RJ45

Backhaul

Illustrations are indicative and not to scale. Specifications are typical values and may vary by variant and software release.

Product overview

The Pacewave Waveplus is a compact, easy-to-deploy outdoor 5G Sub-6 GHz gNB for pole or wall installation. A full gNB in a single IP65 enclosure, it provides 2T2R operation with up to 2 × 2.5 W of transmit power across n77, n78 and n79 variants, using its integrated antenna or an external antenna. Backhaul is over 1G SFP or 1G copper.

WavePlus gNB — Technical SpecificationPDF · single page
